Renewable Energy Integration Into Grids: Challenges and Tech Solutions

Global electricity demand continues to grow as economies electrify transport, build new data centers, and expand heavy industry. Renewables, especially wind and solar, are expanding faster than any other generation source. Between 2018 and 2023, their output more than doubled.

Yet, the end consumers aren’t always sensing immediate benefits. Integration of these variable renewable energy (VRE) sources into the existing ecosystem for seamless distribution continues to present difficulties.

In this briefing, we look at how new digital solutions are addressing the intermittency and variability  challenges of renewable energy integration in power grids.

Key Renewable Energy Grid Integration Challenges

Although renewable production is growing, its integration into existing power grids proves to be anything but easy. The problems span from slow bureaucracy (in the EU, new permits for renewable energy projects take up to 9 years to get approved!) to difficulties with load balancing and limited deployment of long-duration energy storage options beyond batteries.

However, delaying the integration problem could stall the transition progress and undermine projects’ profitability. IEA estimated that electricity generation from solar PV and wind may be 15% lower in 2030 and shave five percentage points off their share of the global electricity mix unless the integration issues get sorted.

The main renewables integration challenges:

• Natural variability in production rates. As solar and wind output are weather-dependent, the electricity supply swings a lot. This can have major downstream effects on the grid, leading to potential imbalances or outages.

• Real-time balancing. With VRE, the energy supply-demand balance shifts on a minute-by-minute basis. So grid operators must continuously match generation to load. This requires greater accuracy in forecasting, especially challenging for short-term wind ramps and cloud cover events in solar, along with higher grid agility.

• Limited inertia. Many renewables are converter-connected, meaning they decouple mechanical inertia from the grid. Thus, maintaining stability after sudden disturbances (like a generator trip) is a major challenge. Solutions include fast frequency response markets, synchronous condensers, and grid-forming inverters that provide “virtual” inertia.

• Mismatch of resources and loads. Renewable hotspots rarely align with demand centers or peak consumption hours. Curtailment can become an issue in regions without long-distance transmission or large-scale storage facilities. In 2024, California had to shed over 3.4 million MWh of wind and solar due to insufficient storage and export capacity.

How Emerging Technologies Facilitate Grid Integration of Renewable Energy Sources

With the green transition underway, power grids will have to accommodate a substantial increase in intermittent generation by 2050. Estimates vary, but most scenarios point to a 9X surge, requiring major upgrades in grid flexibility, storage, and transmission.

Source: McKinsey

The better news? New renewable energy integration technologies are advancing rapidly, with some mature (forecasting, IoT) and others still emerging (grid-forming inverters, fully autonomous self-healing grids).

Our team has identified five main tech solutions that will help address the VRE challenges of forecasting, load balancing, grid orchestration, and demand-side flexibility.

Predictive Analytics for Advanced Forecasting

Grid operators traditionally rely on time-series and regression-based prediction models for energy supply and demand. But these statistical methods struggle with predicting dynamic variables, which are inherent to VRE, such as wind ramps and solar cloud transients. As a result, some may be caught off guard by sudden demand spikes or weather-related underproduction, leading to higher costs and risks to grid stability.

Predictive analytics models, powered by machine learning and deep learning, can provide better ‘optics’ into the future. By operationalizing large datasets such as historical consumption trends, weather conditions, data, and real-time grid performance parameters, the algorithms can produce better short-term and long-term forecasts.

For example, with data on low wind or high solar generation periods, operators can better plan — e.g., prepare supplementary storage, ramp up other plants, or adjust export/import plans. Likewise, teams can anticipate rapid ramps on the grid and adjust generators to avoid emergency measures like load shedding and rolling blackouts. About 20% of real-time utility operators are already using AI for this type of load forecasting.

Furthermore, more advanced AI models can be used to predict weather patterns. In Denmark, where wind supplies ~40% of electricity, a research team at the Danish Meteorological Institute (DMI) recently developed a regional AI weather model. Operated on the Gefion supercomputer, it requires a fraction of computing resources and time to produce accurate predictions in temperature and wind conditions up to several weeks ahead.

Beyond forecasting, predictive analytics solutions can also aid with maintenance. Microcracks, corrosion, and worn-out components can cause major dips in production. With foresight into the equipment state and upcoming operating conditions, teams can take pre-emptive action. For instance, proactively adjust generator setpoints, reposition voltage regulation equipment, or schedule quick-start reserves before a deficit or surge occurs.

Such proactive stabilization, especially in wind farm management, is crucial to prevent voltage swings and other operational disruptions.

Real-Time Load Balancing for Grid Resilience

Even with accurate forecasts, instantaneous fluctuations and unexpected events will still occur, which is why real-time load balancing capabilities are essential for effective integration of renewable energy sources.

DERMS and advanced SCADA systems, often enhanced with AI and IoT, give operators the ability to orchestrate distributed assets at sub-minute intervals, though full “split-second” autonomy is still limited by communication latencies and operator oversight requirements

Modern Distributed Energy Resource Management Systems (DERMS) come with features such as:

• Auto-surplus energy storage during over-production periods
• Auto-power imports during production short-fall periods
• Auto-modulation of plant operations to follow net load changes

These algorithmic systems can react faster than human operators, reducing the impacts of supply fluctuations in renewable energy grids. In fact, many companies are now looking into FLISR-based semi-autonomous grids — AI-enabled distribution networks can isolate problems and reconfigure power flows autonomously.

A team of US researchers recently used computer-aided design software to model a small system of three interconnected self-healing microgrids. With their algorithms, the system was able to balance power production and consumption, isolate tree-downed lines and damage to power plants, and work around them to restore power to vital facilities.

Commercially, self-healing solutions are available from GE Vernova. FLISR currently controls over 8,000 megawatts of regulated electricity at one of its customers’ facilities. The system can detect network faults in real-time, suggest reconfiguration plans in real-time to human operators, issue recommended controls, and provide real-time power flow analysis.

On the load side, real-time balancing systems can help operators harness demand flexibility through IoT-connected devices and dynamic pricing. Smart meters and IoT controls allow utilities to reduce or shift loads within seconds in response to grid conditions. For example, an AI system may briefly cycle down a fleet of commercial HVAC systems or delay thousands of water heaters for a few minutes to offset an unexpected drop in wind generation. This kind of automated demand response (where consumers’ devices respond to grid needs) enables loads to become an active participant in balancing.

These capabilities open up new revenue streams for grid operators, like partnerships with the automotive sector. Jaguar Land Rover and EV Energy recently ran a smart charging pilot for the company’s newest EV model. EV Energy’s charging software platform integrates with JLR’s connected vehicle platform to intelligently schedule charging at grid-friendly times that prioritize renewable energy. Such solutions, coming directly from utility companies, could help attract new revenues.

Virtual Power Plants for Extra Demand-Side Flexibility

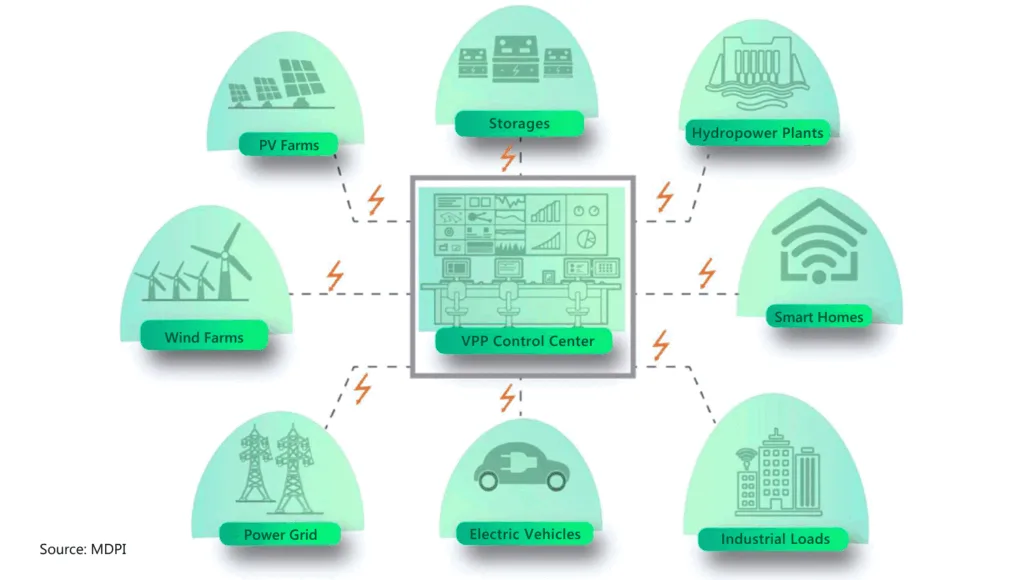

A virtual power plant (VPP) digitally combines an array of distributed energy resources (DERs) into one operational entity. Collectively, one VPP can aggregate hundreds or thousands of small units to provide energy and grid services on demand. This capability has profound implications for renewable integration.

Source: MDPI

VPPs enable the deployment of renewables to a greater extent by leveraging demand flexibility and storage, along with generation. For example, a VPP can direct excess solar capacity to charge plugged EVs or residential batteries during peak solar hours. Later in the day, it can discharge those batteries to supply evening demand. In this scenario, a VPP smooths out the variability by time-shifting energy via aggregated storage and adjusting flexible loads.

Aggregating DERs into VPPs boosts reliability and can defer expensive infrastructure upgrades required for renewable energy integration into power grids. Instead of building a new gas peaker plant to meet peak loads, an operator might tap a VPP to reduce peak demand.

This approach has been shown to cut peaks significantly. The South Australian virtual power plant (SA VPP), which combines over 50,000 solar plus Tesla Powerwall home battery systems, is already providing local communities with more affordable and reliable access to electricity. It has also helped stabilize  frequency levels in the grid  and prevent disruptions during accidents and unexpected grid disconnections through 2019, 2020, and 2022. Analysis by RMI suggests that by 2030, VPPs could reduce peak demand in the US by about 60 GW, equivalent to the capacity of dozens of power plants. By 2050, that impact could exceed 200 GW of peak shaving.

Leap, a VPP development platform, and ChargeScape, a joint venture of Ford, Honda, BMW, and Nissan, are already working towards making those forecasts a reality. Together, they aim to deploy the largest EV virtual power plant that will support bidirectional power export for EV owners, along with access to smart charging, which reduces peak grid demand loads.

IoT Sensors for Seamless Orchestration

IoT sensors and smart meters provide granular, real-time visibility into grid conditions — a significant improvement over legacy grids with limited telemetry. Edge devices now measure everything from line voltage, frequency, transformer temperature, to wind turbine output, and even weather data at the local feeder level. The aggregated data provides faster insights into grid instability and overloads early on for proactive intervention.

Thanks to Advanced Metering Infrastructure (AMI) with two-way communication, utilities get real-time, more comprehensive readings, while consumers can monitor demand and power quality, enabling them to spot a voltage sag or surges. Transformer-mounted IoT sensors, in turn, can flag an overload as EV chargers in an area spike in use. With millions of data points streaming in, utilities gain an “always-on” picture of the grid’s health, which is critical when managing dynamic renewables. As NREL notes, a flexible grid with high renewables requires this kind of robust sensing and communication to balance power in real time.

Without IoT-enabled coordination, a high density of rooftop solar could cause back-feed issues or voltage problems. With smart grid tech, those same DERs become an asset, providing local generation when needed and modulating output when there’s too much. AI algorithms fed by IoT data can decide the optimal dispatch of these DERs in real time.

For instance, Kit Carson Electric Cooperative (KCEC) partnered with Camus to gain better orchestration capabilities. The new solution will automatically monitor solar generation and reduce production when necessary to protect utility equipment. This way, KCEC can avoid costly asset damages while also maximizing the performance of its solar portfolio.

The IoT layer is also what allows effective integration of distributed energy resources (DERs) like rooftop solar panels, battery storage systems, and smart appliances/EVs. Traditional grids treated end-users as passive consumers.  Smart grids turn them into active participants (“prosumers”). IoT connectivity enables remote coordination of thousands of private energy generation or storage installations. For example, you can remotely monitor and control rooftop PV inverters to reduce output if the local grid is oversaturated or, on the contrary, to provide reactive power support.

Moreover, teams can also exercise more granular controls over consumer devices. A fleet of smart thermostats or water heaters can be instructed to shed load during a cloudy period to help the grid, and EV chargers can be slowed down or paused temporarily — all through remote IoT commands.

The extra demand-side flexibility can reduce the pressure on grids with a high level of variable renewable generation. Thanks to smart grid integration and orchestration of renewable energy, operators can dynamically shift the load and mitigate the risks of renewable curtailment.

Digital Twins for Operational Excellence

A digital twin (DT) is a real-time software-based replica of a physical system. In this case, components of the power grid (such as generators, substations, or even the entire network).

By streaming data from thousands of sensors into a physics-based model, digital twins allow operators to simulate, analyze, and optimize grid performance under a wide range of technical and economic scenarios (e.g., high renewable penetration, extreme weather).

Germany’s largest distribution grid operator E.ON has developed a digital twin for its 700,000-kilometre power grid. The central data platform aggregates information from 55 million network components and over 180,000 measuring devices, providing real-time visibility into the grid. The DT model can then be used to simulate grid planning, connection, and operators using live data. Moreover, the model identifies areas where low-voltage grid expansion is urgently needed, where adequate capacity is available, or where flexibility is needed.

As more than half of Germany’s renewable energy capacity is connected to E.ON, the digital twin enables demand-oriented grid expansion, strengthening supply security and accelerating energy transition.

Hitachi Energy, in turn, recently tested digital twins on its India-based wind generation site. The model replicates all farm assets and relies on AI techniques for performance analysis and optimization. The insights help plant operators make more accurate operational and predictive maintenance decisions.

Moving Towards the Future of Decentralized, Agile, Microgrids

As the supply and demand of renewables increase, the architecture of the power system itself is evolving. Decentralized grid topology and microgrids, in particular, become the preferred operational setup.

As more nodes operate independently, operators gain more localized control, though system-wide coordination becomes more complex. From a grid integration perspective, microgrids can island during outages and reduce local stress, but they complement rather than replace the stability of large interconnected grids.

Moreover, operating many decentralized low-carbon grids can cut overall emissions and provide learning that scales up to larger grids. The transition toward decentralized energy is seen as a complement to large-scale renewables — and both will play roles in a net-zero future.
